Description
Do you want to own a very cool electric power moped, so that you can go for a joy ride around effortlessly?
Do you worry about how much a high performance moped will cost you?
We are introducing a Brand New 1000W 48V 26" Electric Bicycle Front Hub Conversion Kit which meets your requirement of converting your bike to an electric powered scooter/moped in much more reasonable price.
Upgrade:
-

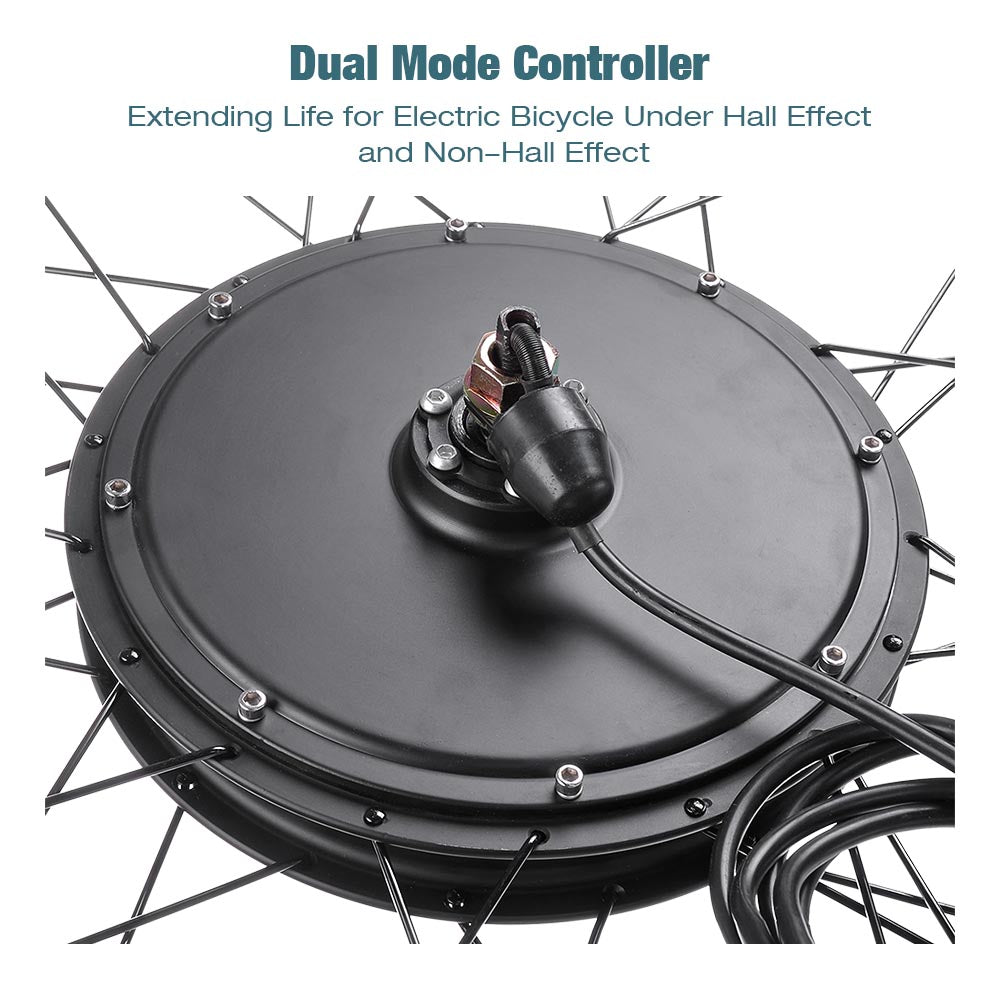

Dual Mode Controller: Motor works under Hall effect and non-Hall effect, extend life for electric bike
(For 1 mode controller, the motor only work under hall effect, if hall components inside the motor break down, the motor will stop working. But with our controller if the components break down, it'll switch into non-hall effect mode, the motor will still be working.)
High Quality:
- 45 - 48 KM/H top speed
- Provides you with a whole wheel with tire, not just the tire frame Takes less than hour to install
- The kit includes motorized wheel, motor controller, speed throttle, power break lever, wire harness
- Quiet and reliable brushless gearless hub motor
- Motor Product Details: 48v / 1000w / 470rpm
- High motor efficiency: >85%
- Motor diameter: 245mm

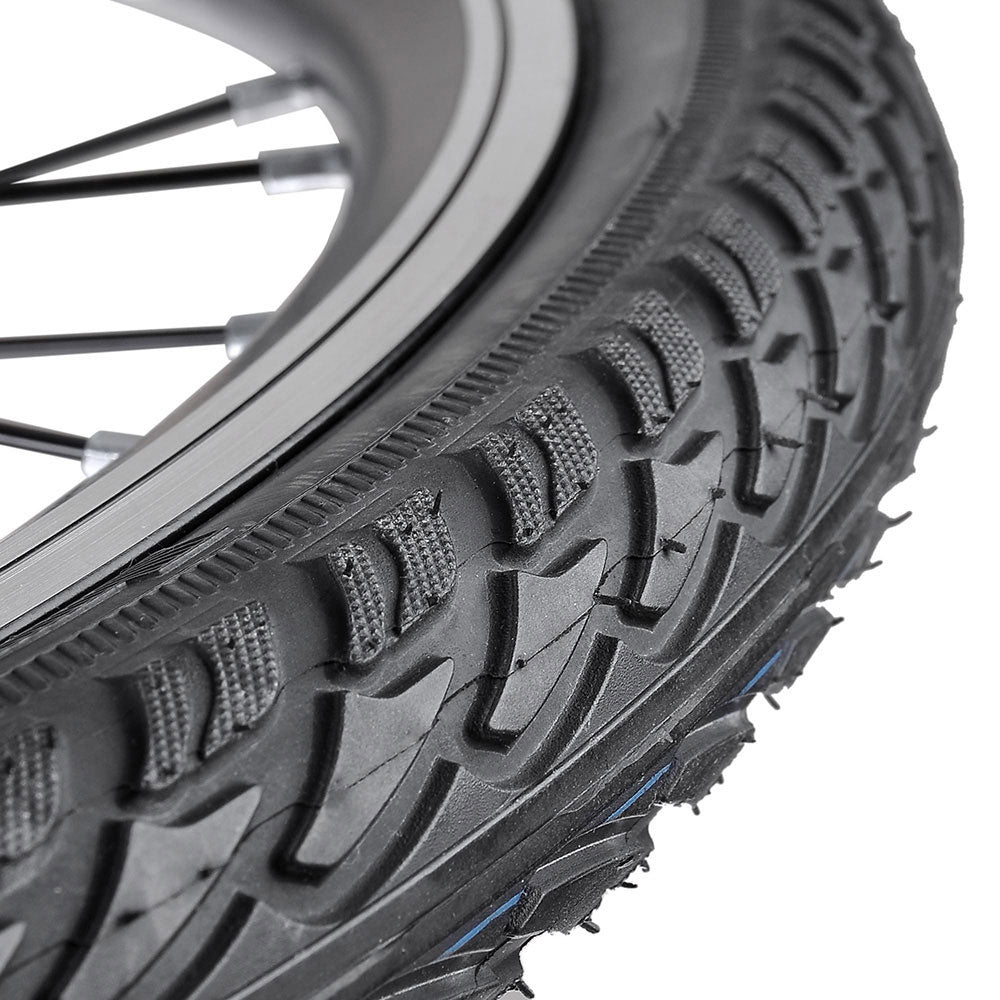

- Wheel size: 26"*1.75"
- The motor dropout spacing is 100MM
- Drive system has no moving chains or gears, no friction, more efficient, less chance to break!
- Brake shuts off motor automatically, saves energy, improves safety!

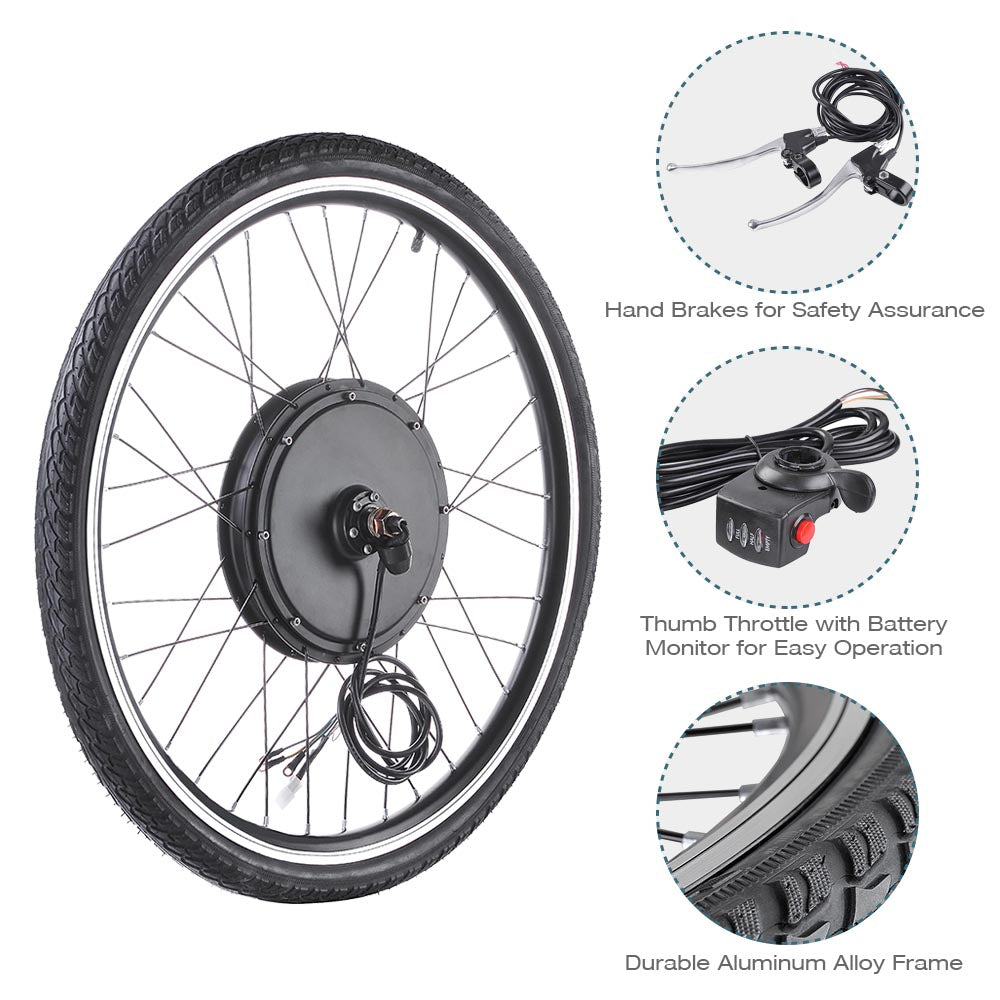

- Thumb throttle with 3 LEDs indicator lights
- Durable 600D Oxford cloth carrying bag along with a zippered main compartment for battery
- It's for bicycle only.

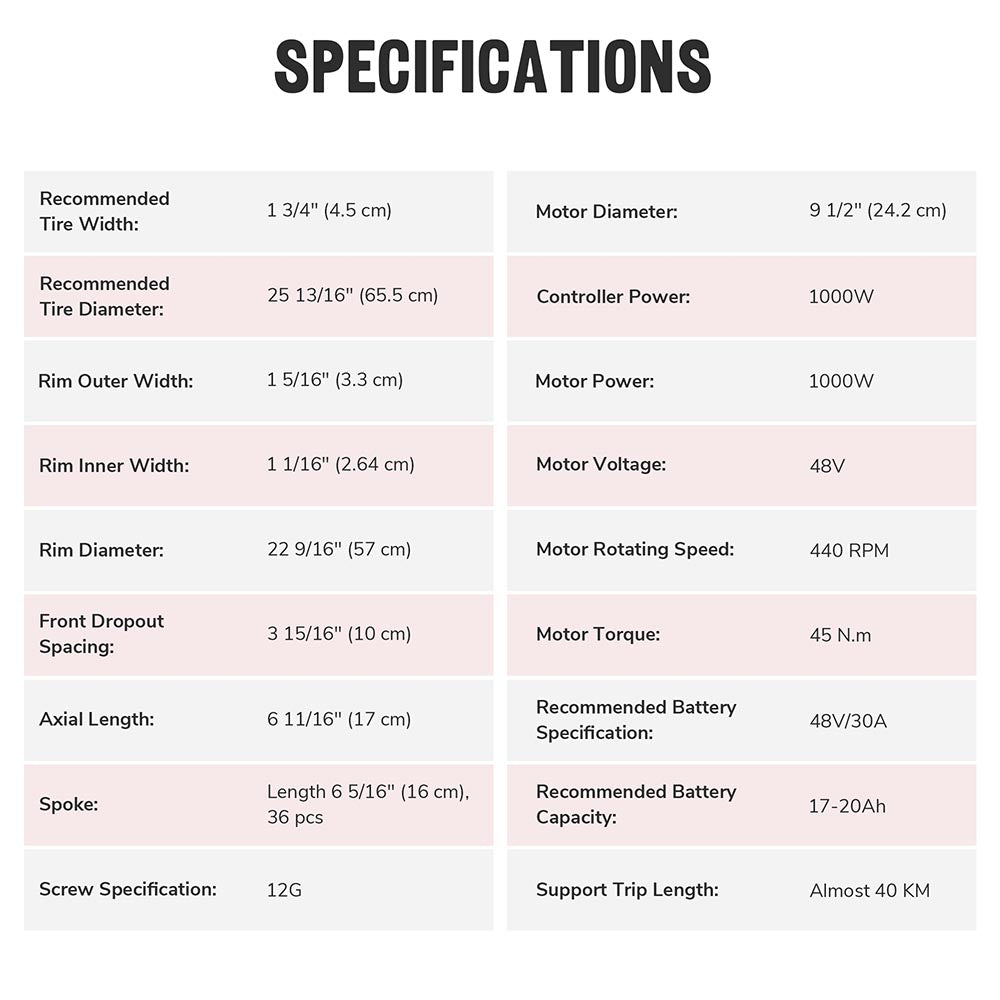

Product Details:

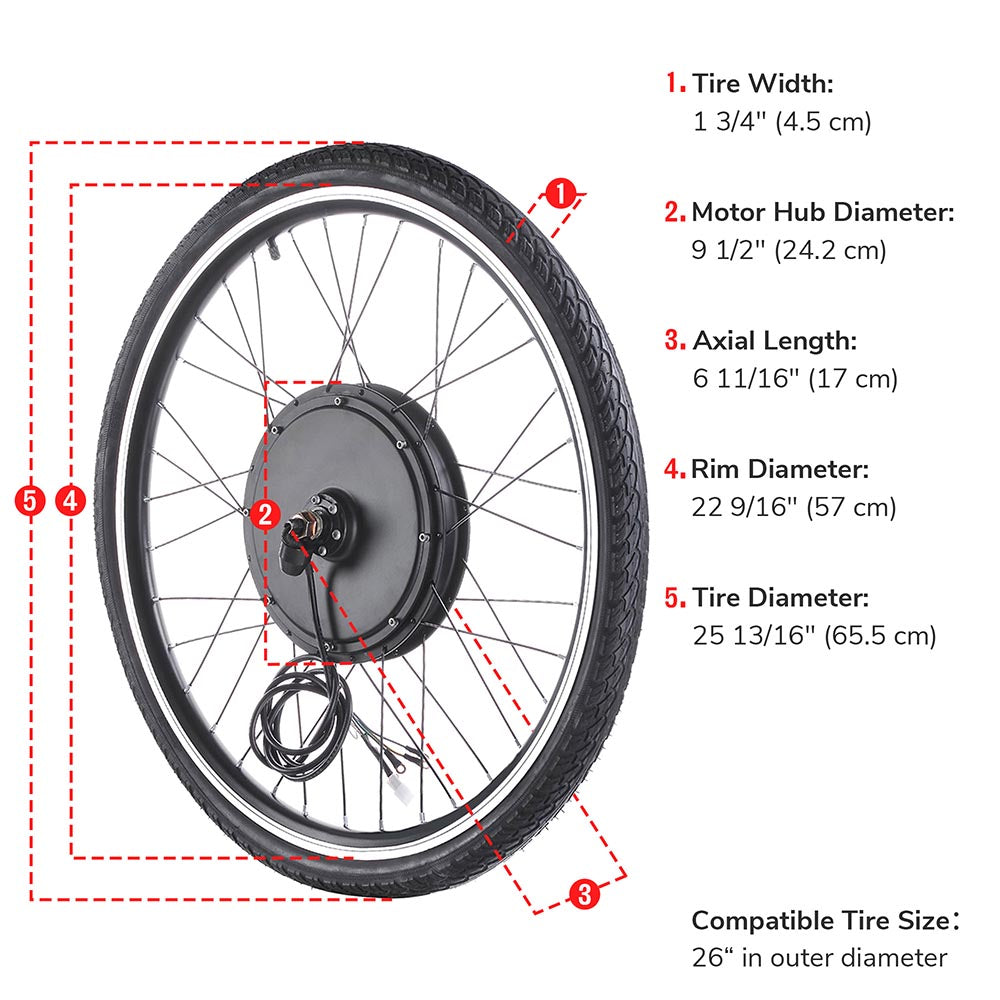

- Overall Dimension(Dia.xW): 25 13/16" x 1 9/16" (65.5 x 4.5 cm)
- Compatible Tire Size: 26"
- Rim Diameter: 22 7/16" (57 cm)
- Axle Length: 6 11/16" (17 cm)

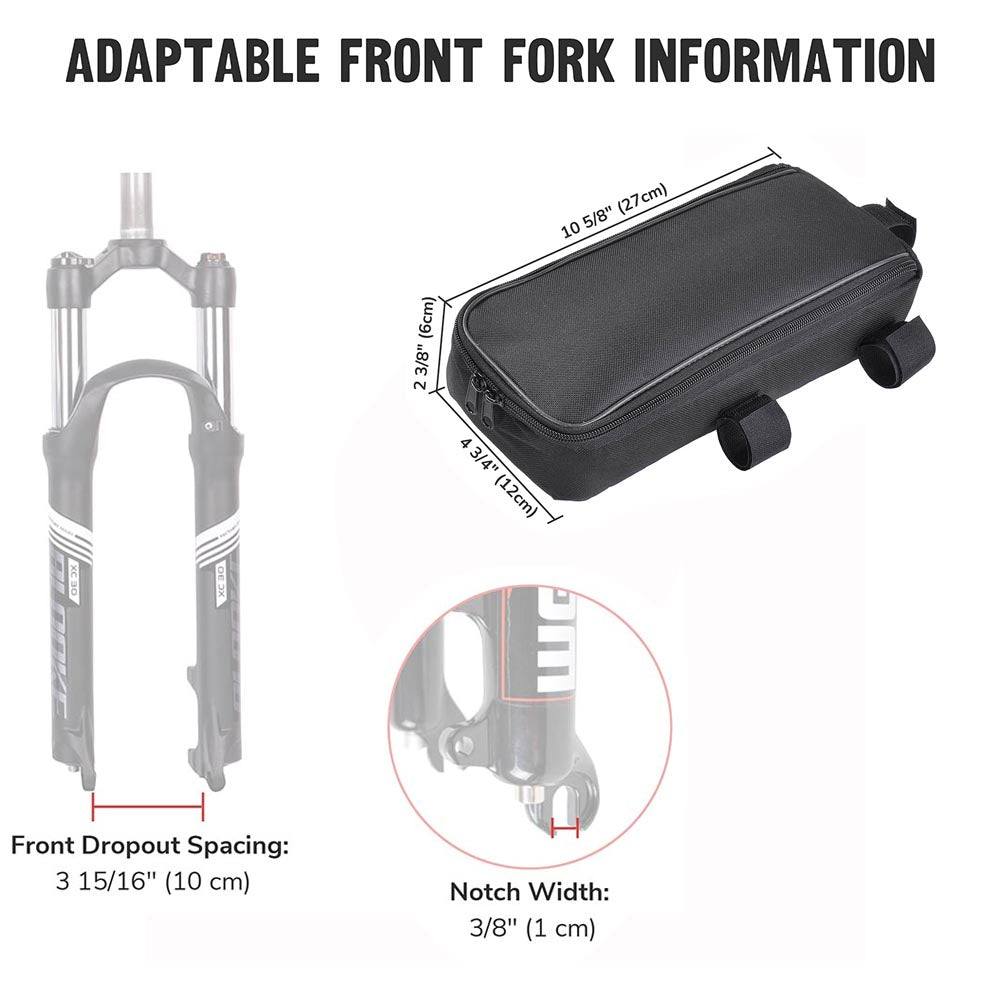

- Front Dropout Spacing: 3 15/16" (10 cm)
- Motor Diameter: 9 1/2" (24.2 cm)

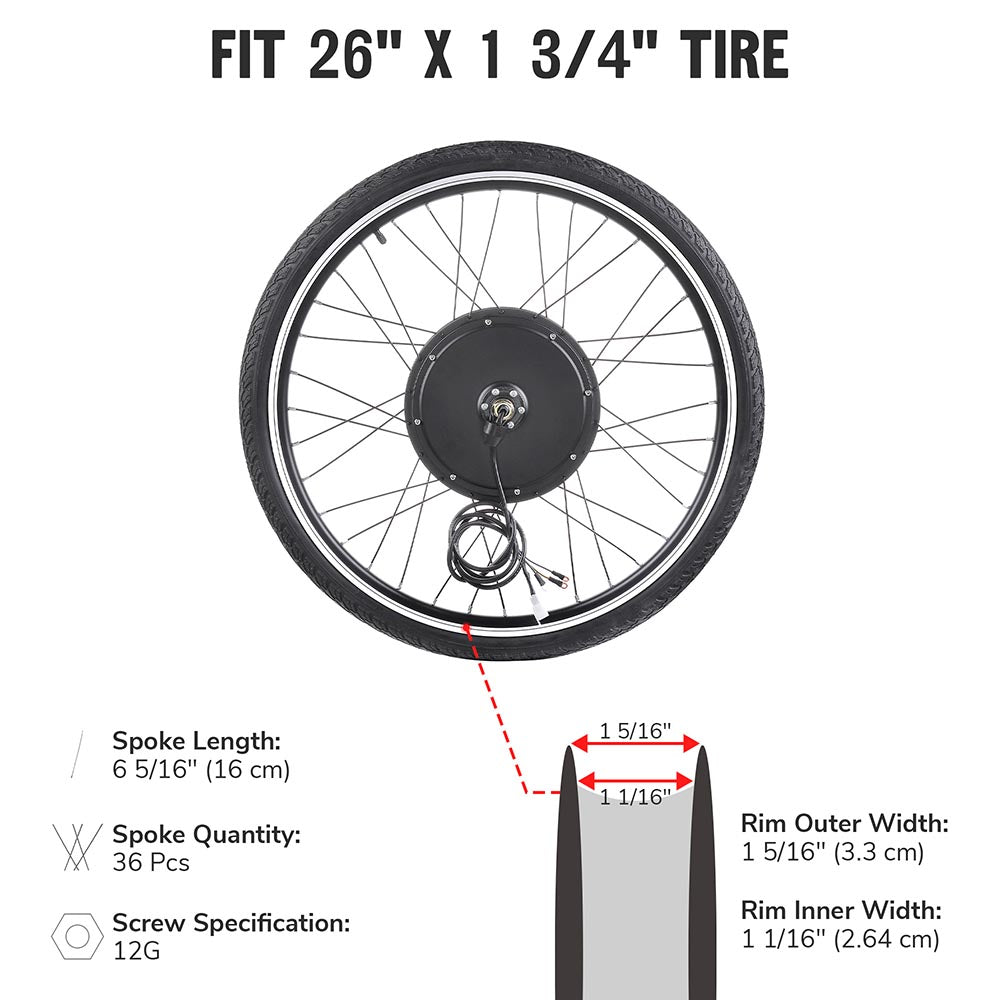

- The Number of Spokes: 36
- Spokes Length: 6 5/16" (16 cm)
- Spoke Specification: 12G
- Controller Power: 1000W
- Motor Voltage: 48V
- Motor Rotating Speed: 440 RPM
- Motor Torque: 33.2 ft·lb (45 Nm)
- Recommended Battery Specification: 48V/30A
- Recommended Battery Capacity: 17-20Ah
- Suitable Brake Type: Disc Brake / V-Brake
- Net weight: 23.5 lbs (10.66 kg)

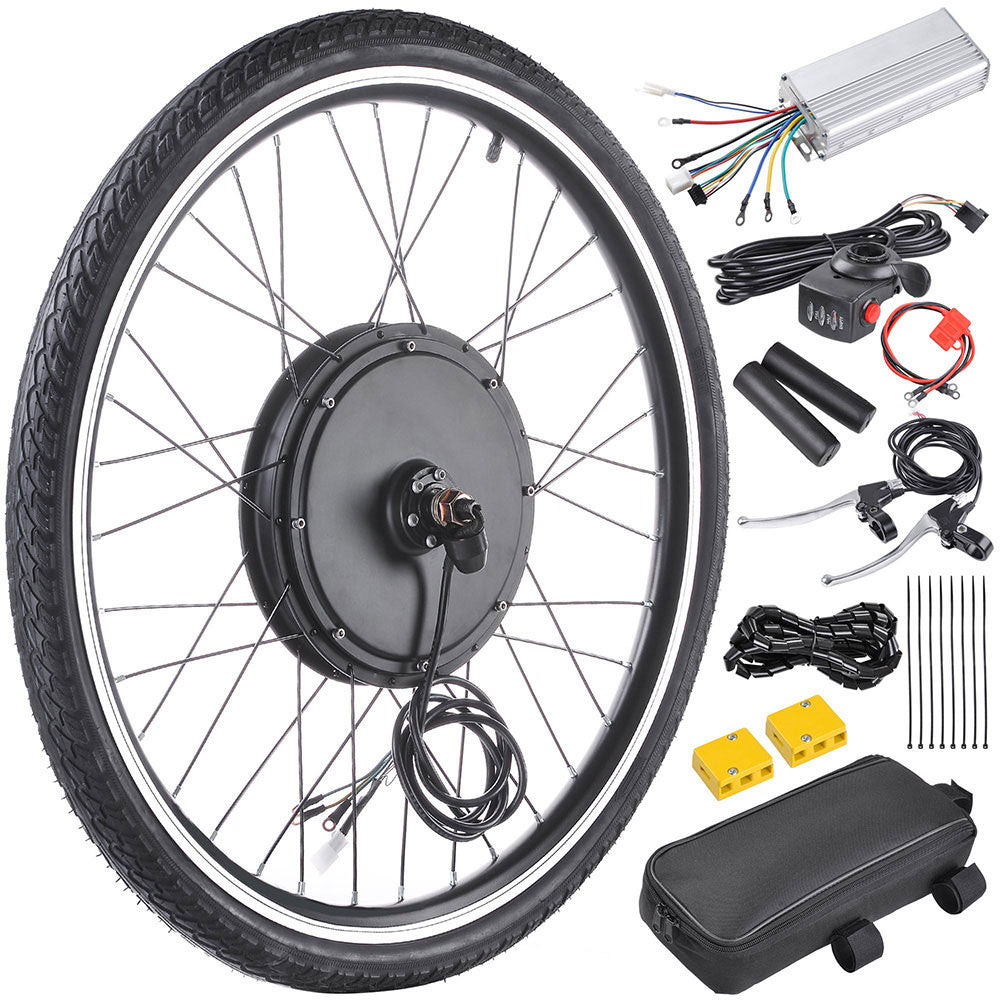

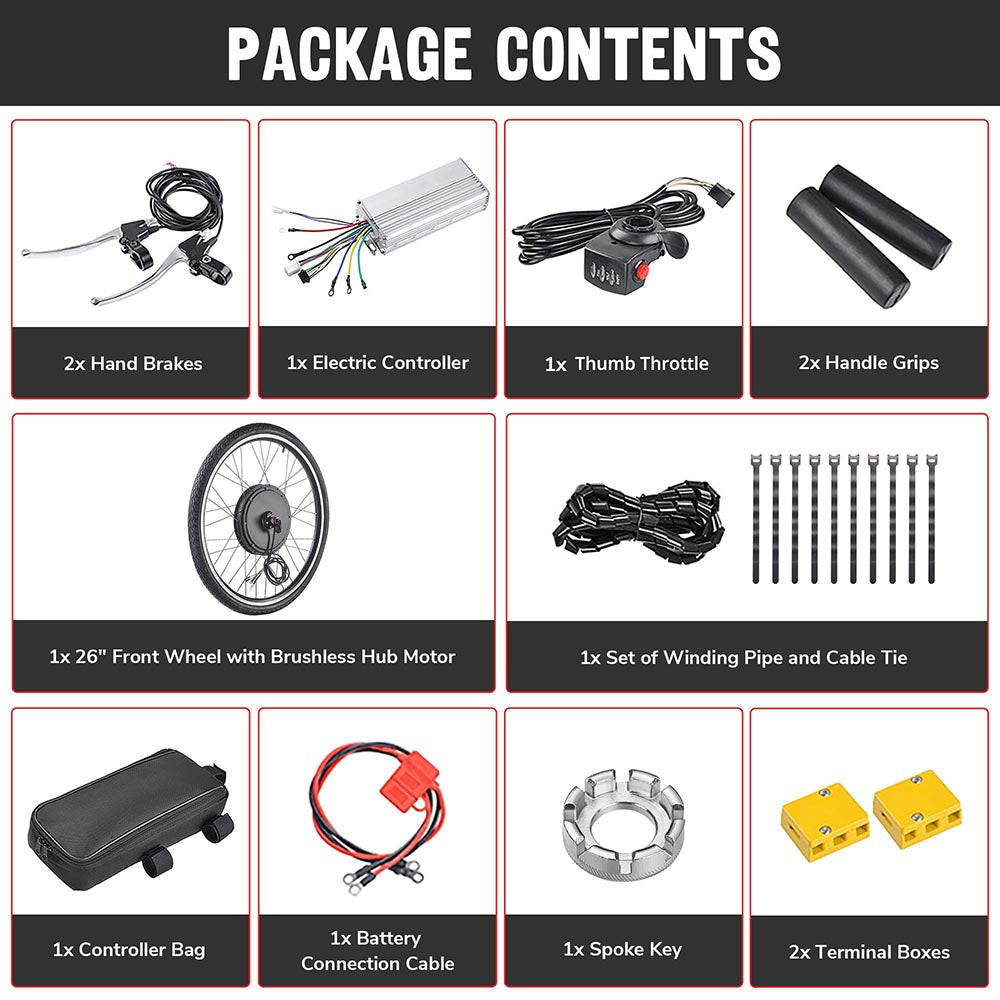

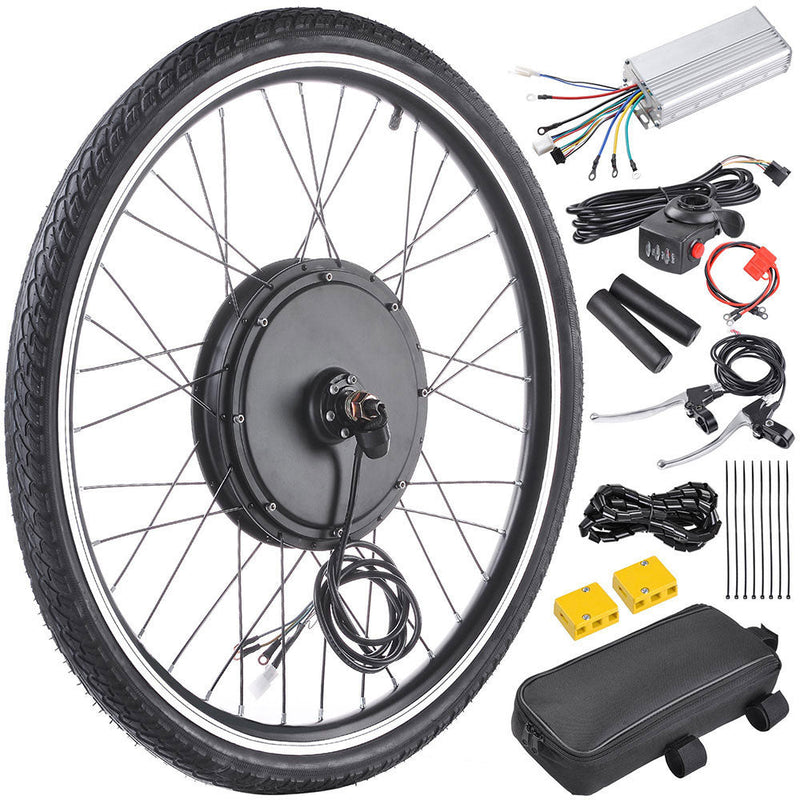

Also In The Box:
- Powerful 1000W 48V brushless hub motor

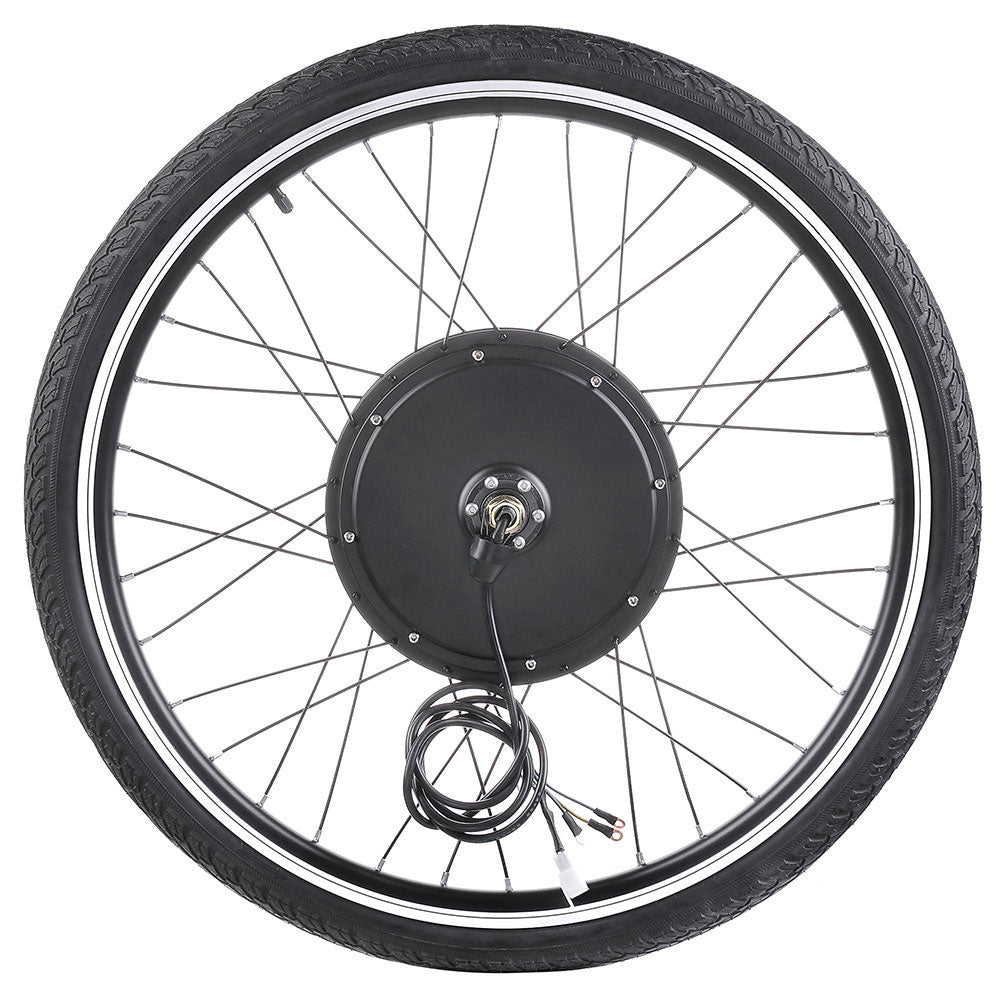

- 26" front wheel (the whole wheel with tire!)
- 1x Battery Connection Cable
- 1x Electric Controller
- 2x Hand Brakes
- 2x Handle Grips
- 1x Thumb Throttle
- 1x Controller Bag
- 1x Set of Winding Pipe and Cable Tie
- 2x Terminal Boxes
- 1x Manual
- 1x Spoke Key
- Battery and Charger are not included
Battery Recommendation:
1. Electrokinetic cell battery ( Li, lead-acid, NiMH battery etc.) featured in nominal voltage 48v, nominal capacity in the range of 17 to 20Ah is compatible with the motor. About 40KM of travel
*Noice:
1.Must to wear a helmet before riding this electric bicycle for protection.
2.Please go to those automobile repair shop with standard business license for modification.
3.Please don't use when it is raining.
4.This product is only suitable for conventional bicycle, not for tricycles, tractors, etc.
5.If you have any question about the compatible Model, please contact our Customer Service before purchasing.
