Description

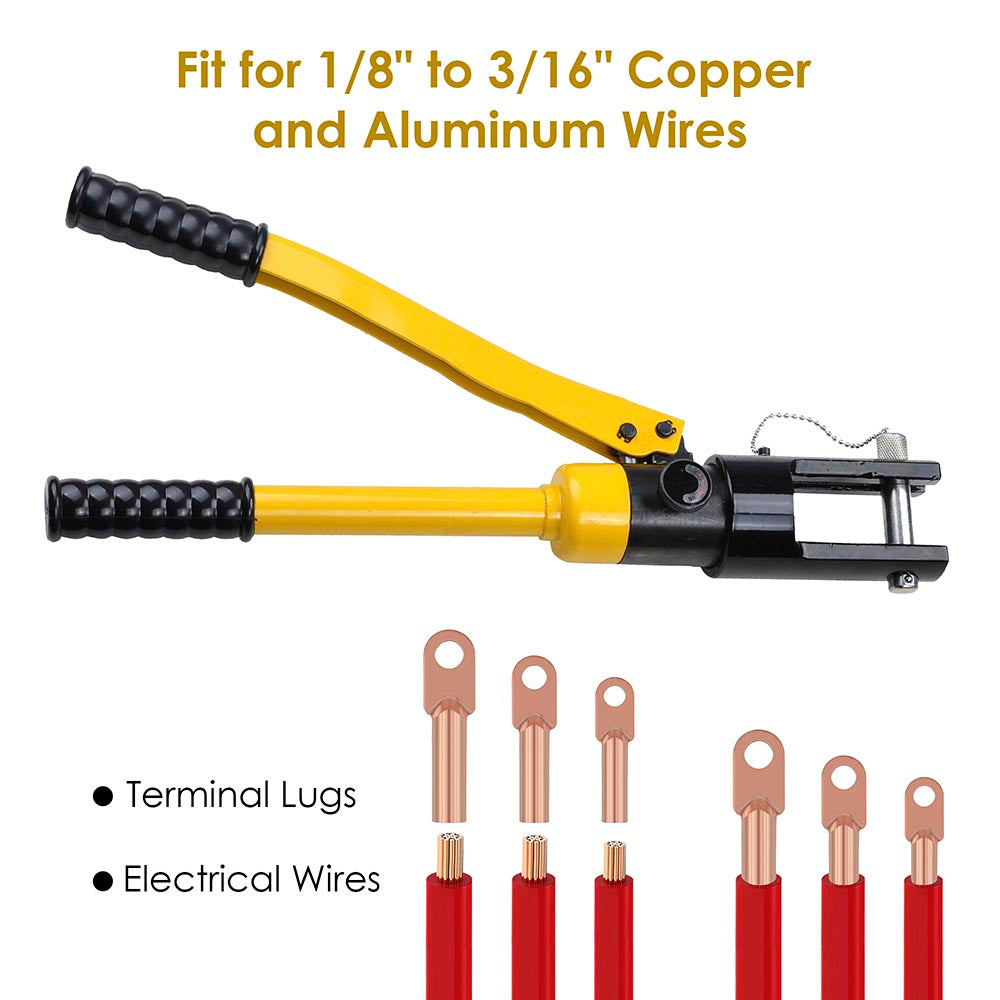

This is a brand new 16-ton hydraulic wire crimping tool which has 11 pairs of dies! With it, you could crimp wires and butt connectors on a wide range of wire sizes. Much easier to use than a pair of hand crimpers. The crimper tool crimps AWG 6 to 600 MCM copper and aluminum wires using 11 pairs of chrome-plated steel crimping dies.
Great for battery and welding cables, power wires, and electrical cables.
High Quality:
- Hydraulic wire crimper features 11 sets of dies for providing large crimping range from 16 to 300 square millimeters
- Hydraulic Design

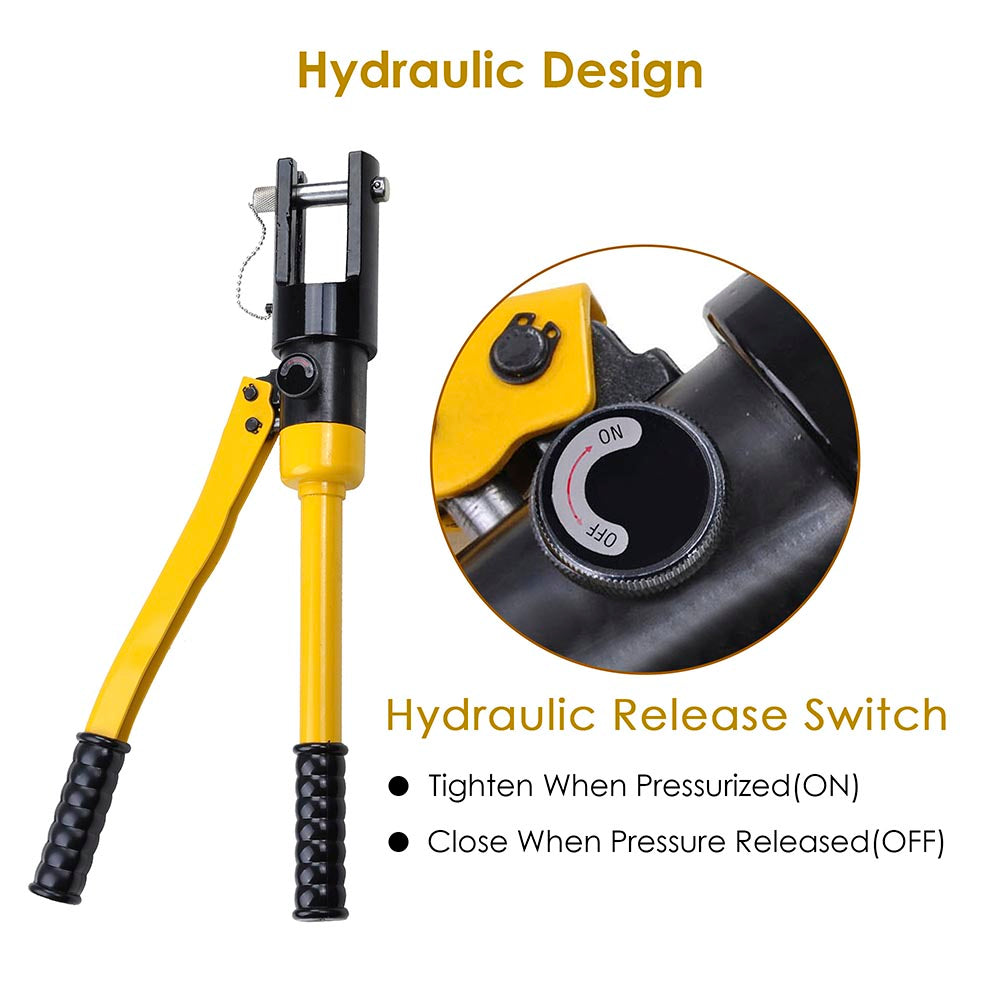

- Providing 16-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
- Hydraulic crimper is much easier than using a hand crimping

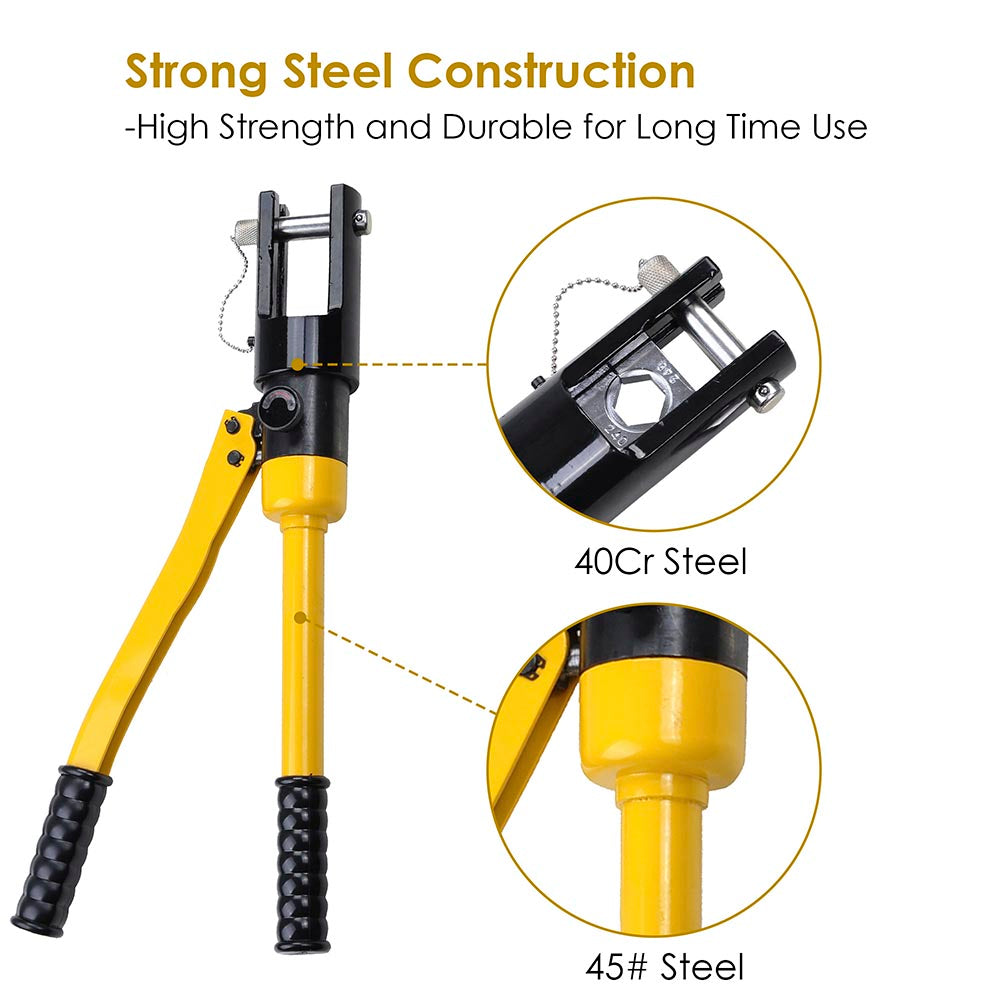

- Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
- Convenient & Portable

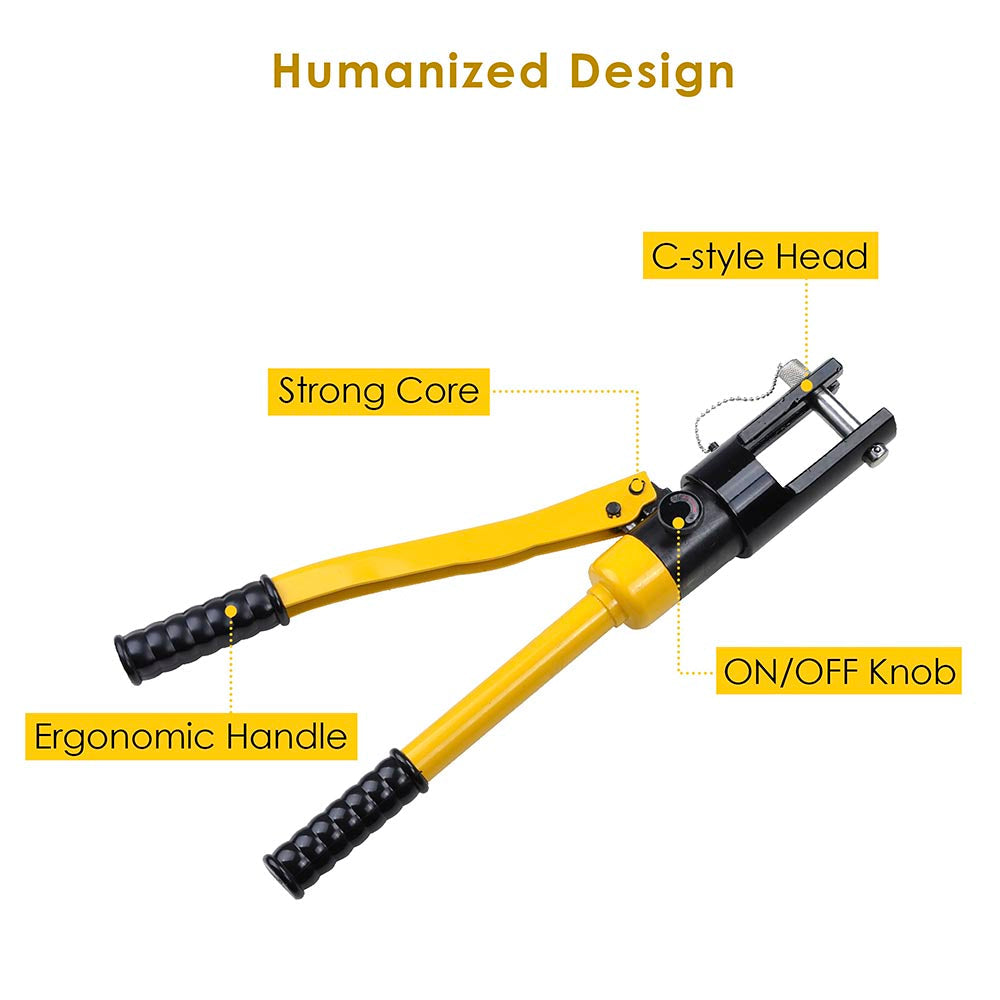

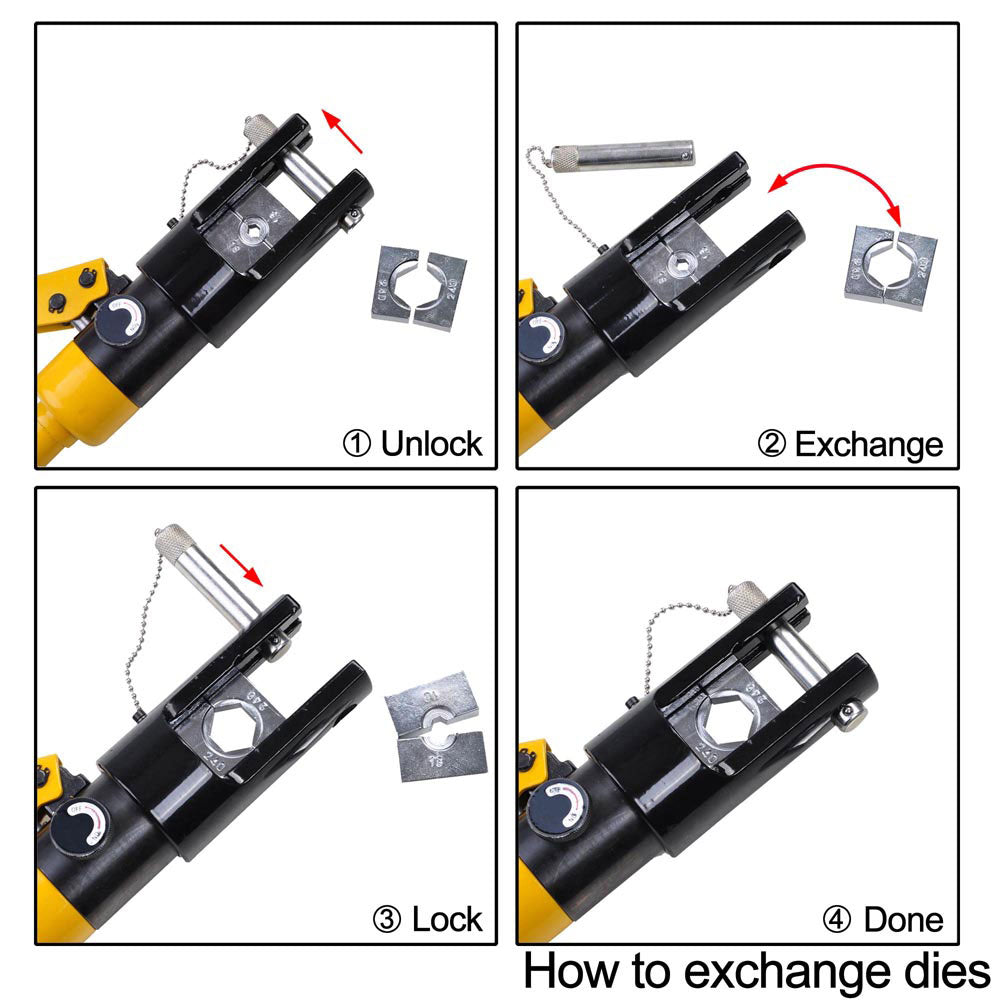

- C-style head for easy changing the dies and fixing the wire in position
- Long ergonomic handle for convenient and labor-saving operation

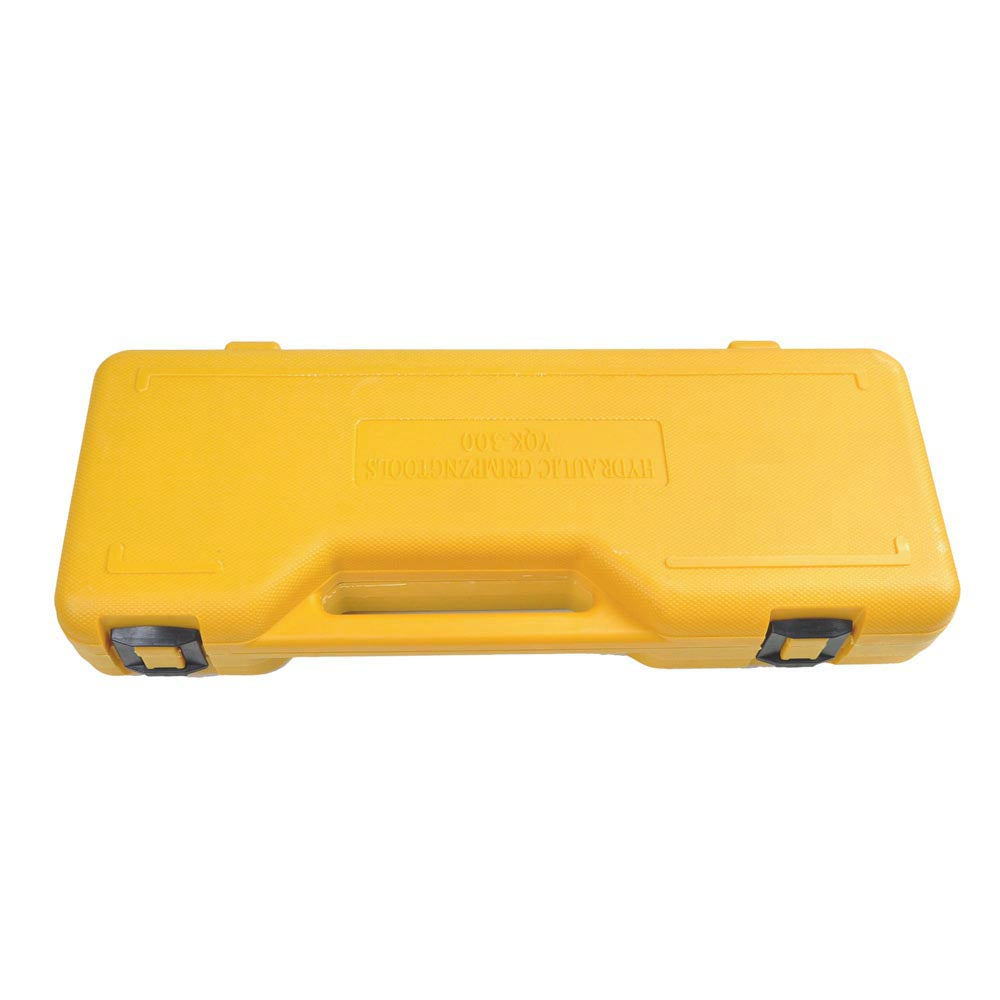

- Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place
- Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire
Product Details:
- Length: 19 11/16" (50 cm)
- Stroke capacity: 22mm

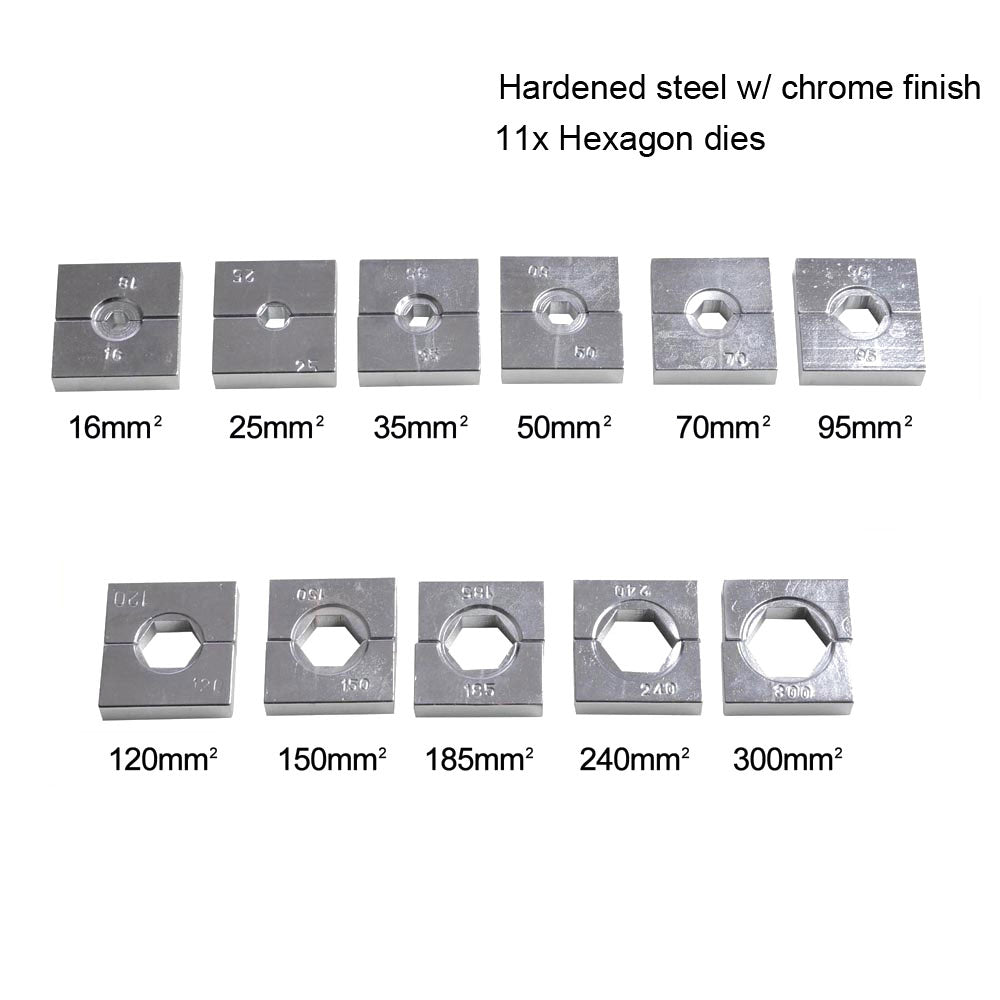

- 11x dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Fits For: 6 AWG to 600 MCM copper and aluminum wires
- Maximum Crimping Power: 16 Ton
- Material: 45# Steel, 40Cr Steel
- Net Weight: 13.2 Lbs (6 kg)
Reference:
|
AWG
|
MM2
|
|
6
|
16
|
|
4
|
25
|
|
2
|
35
|
|
1/0
|
50
|
|
2/0
|
70
|
|
3/0
|
95
|
|
4/0 - 250 MCM
|
120
|
|
300 MCM
|
150
|
|
350 MCM
|
185
|
|
500 MCM
|
240
|
|
600 MCM
|
300
|
Also In The Box:
- 1x 16-Ton Hydraulic Wire Crimper
- 11x dies (One Set of Dies has installed on the crimper.)
- 1 Set of Seal Rings
- 1x Plastic Carrying Case
- 1x Manual
Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
